Corrugated Forming Machine
Suitable for thickness 0.3-0.7mm
Feeding width 1000-1250mm
Work speed 0-30m/min
Perfect shape waves, accurate size
Automatic PLC control system
Contact by office@willingint.com or 0086 13588279758
Chat Now
Message

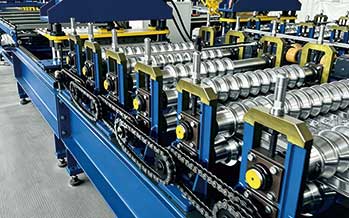

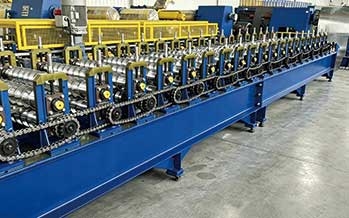

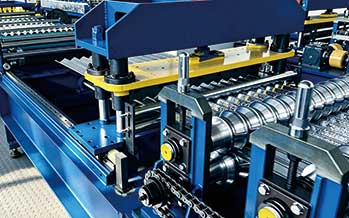

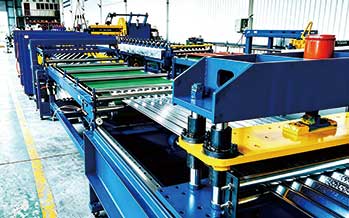

E-mailDETAIL PICTURE
PROCESS FLOW
PARAMETER
|
Material |
Type |
Colored or galvanized steel sheet |
|
Thickness（mm） |
0.3-0.7 |
|
|
Yield stress（Mpa） |
230-300 |
|
|
Max. Forming speed（m/min） |
0-15m/min or 0-30m/min |
|
|
Roller material |
45# steel with hard chrome treatment |
|
|
Roller driven type |
Chain transmission |
|
|
Controller |
PLC |
|
|
Operation |
Touch screen and button |
|
|
Hydraulic system pressure（Mpa） |
12 |
|
|
Hydraulic station motor power（KW） |
4 or 5.5 |
|
|
Main motor power（KW） |
3 or 4 |
|
|
Total weight（Kg） |
About 6000 |
|
