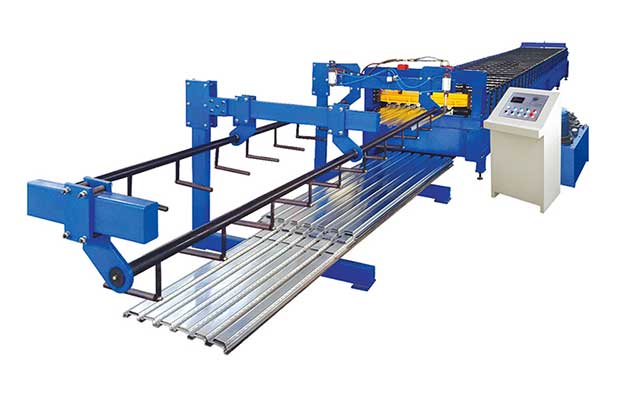

Floor Deck Forming Machine

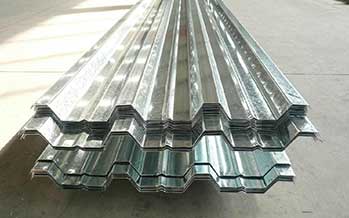

Steel floor decking roll forming machine, the finished products are of many features, such as simple shape, large wave height, high intensity and good adhesiveness when pouring the concrete together with the welded steel wire net on-site. In the high-storey building, it not only can save steel mold board, but also reduce the bearing of the floor; on basis of equal capacity, it reduces the steel amount of engineering usage, so that it saves cost of investment.Profiles and sizes are customized as per customers' requirements.

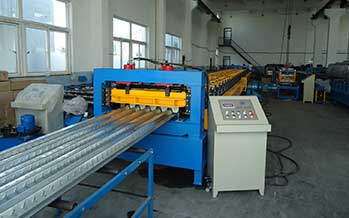

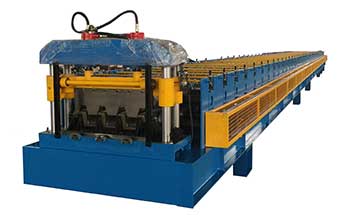

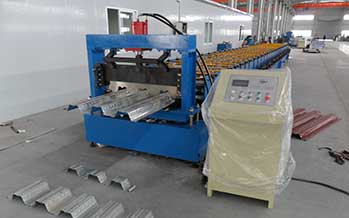

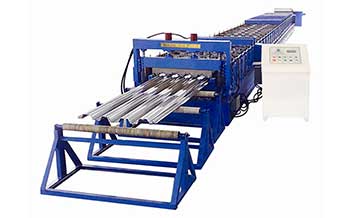

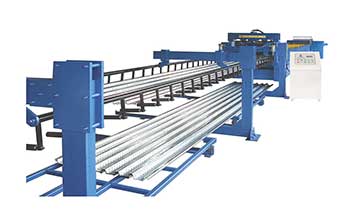

DETAIL PICTURE

Floor-deck-forming-machine1
Floor-deck-forming-machine2
Floor-deck-forming-machine3
Floor-deck-forming-machine4

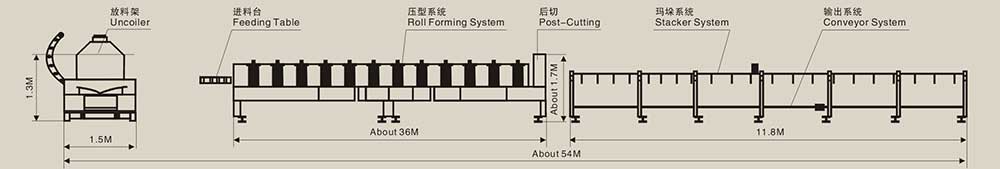

PROCESS FLOW

PARAMETER

Material

Type

Colored or galvanized steel sheet

Thickness(mm)

0.8-1.2

Yield stress(Mpa)

230-300

Max. Forming speed(m/min)

0-15m/min

Roller material

#45 steel with hard chrome treatment

Roller driven type

Chain transmission

Controller

PLC

Operation

Touch screen and button

Hydraulic system pressure(Mpa)

12

Hydraulic station motor power(KW)

22-30

Main motor power(KW)

   5.5

Total weight(Kg)

   About 10000
