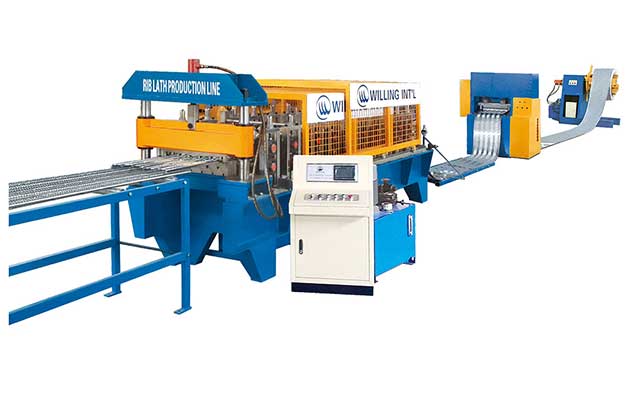

Rib Lath Production Line

The rib lath mesh produced by the rib lath production machine line is mainly suitable for gypsum and wall reinforcement. It has excellent mechanical properties and light weight, and is especially suitable for concrete pouring in sections. The machine has advanced science and wide practicability.
Profiles is customized as per customers' requirements.

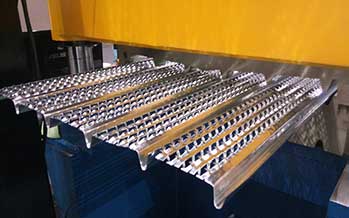

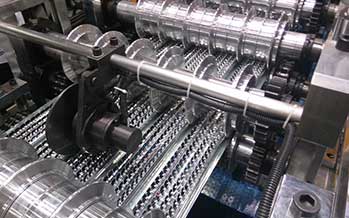

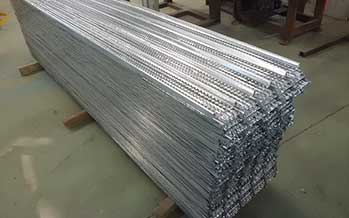

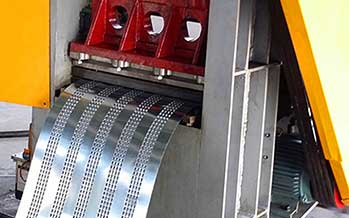

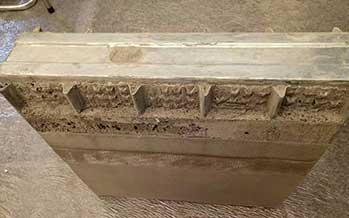

DETAIL PICTURE

Rib-Lath-Production-Line1
Rib-Lath-Production-Line2
Rib-Lath-Production-Line3
Rib-Lath-Production-Line4

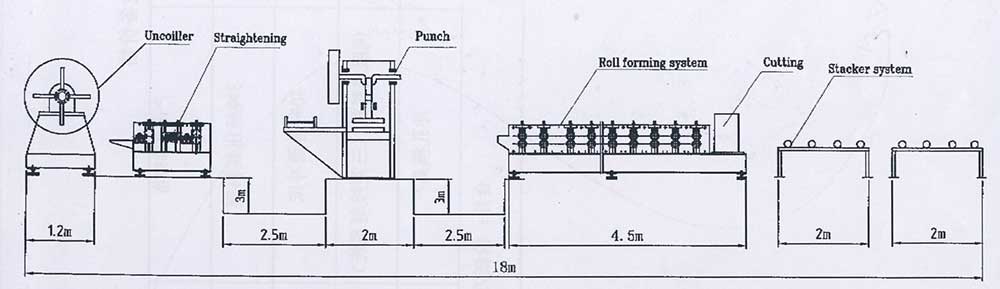

PROCESS FLOW

PARAMETER

Material

Type

Colored or galvanized steel sheet

Thickness(mm)

0.3-0.6

Yield stress(Mpa)

230-300

Max. Forming speed(m/min)

2-3m/min

Roller material

45# steel with hard chrome treatment

Roller driven type

Chain transmission

Controller

PLC

Operation

Touch screen and button

Hydraulic system pressure(Mpa)

12

Hydraulic station motor power(KW)

4

Main motor power(KW)

3

Total weight(Kg)

About 6000
