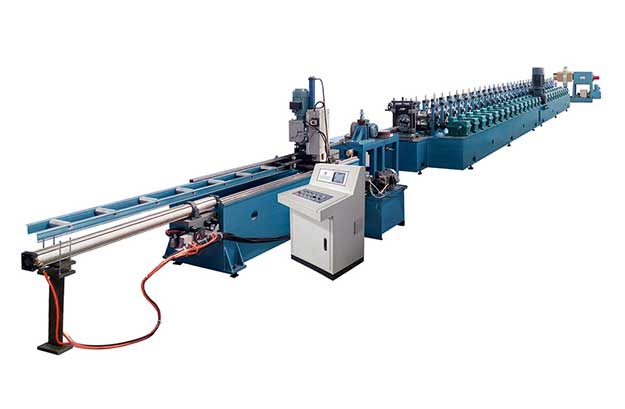

Solar Energy Photovoltaic Stents Production line

The products produced by this machine are mainly used for photovoltaic supports, cable tray supports, pipe gallery supports and seismic supports, fire pipelines and equal-split pipeline supports, etc. As a photovoltaic bracket, it is a special bracket designed for placing, installing and fixing solar panels in the solar photovoltaic power generation system.
Profiles is customized as per customers' requirements.

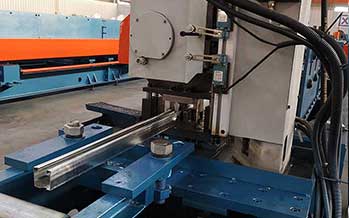

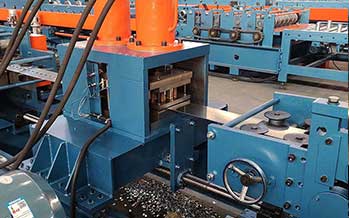

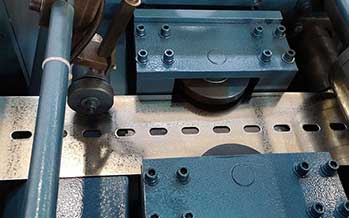

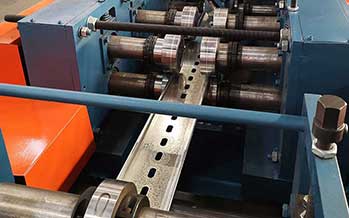

DETAIL PICTURE

Solar-Energy-Photovoltaic-Stents-Production1
Solar-Energy-Photovoltaic-Stents-Production2
Solar-Energy-Photovoltaic-Stents-Production3
Solar-Energy-Photovoltaic-Stents-Production4

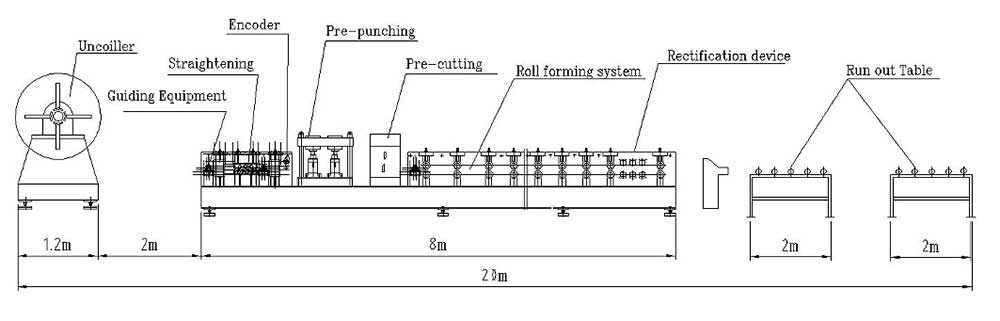

PROCESS FLOW

PARAMETER

Material

Type

Galvanized steel coil

Thickness(mm)

2.0-2.5

Yield stress(Mpa)

230-300

Max. Forming speed(m/min)

0-12m/min

Roller material

Cr12 + #45 steel with hard chrome treatment

Roller driven type

Gear-box transmission

Cutting way

Non-stop cutting

Controller

PLC

Operation

Touch screen and button

Hydraulic system pressure(Mpa)

12

Hydraulic station motor power(KW)

15

Main motor power(KW)

11

Total weight(Kg)

About 10000
