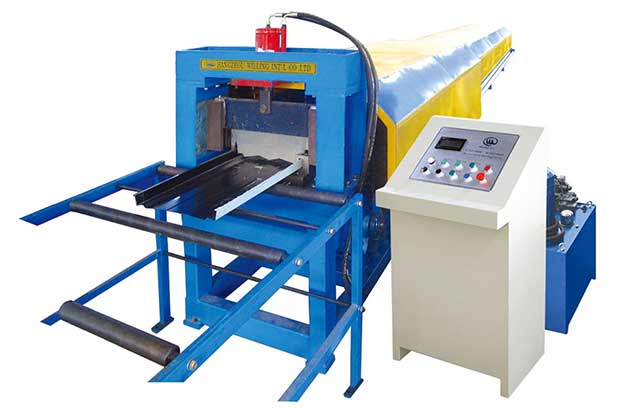

Standing-seam-roll-forming-machine0

Standing Seam Roll Forming Machine

The steel tile roof sheet which produced by steel tile roll forming machine with high strength, good flatness, low water absorption, folding resistance, frost resistance, acid resistance, alkali resistance, never fade, and other significant advantages. It is widely used in factories, residences, hotels, villas and other industrial and civil buildings, and is highly praised by architectural masters for its diverse shapes, simple and colorful glaze colors, environmental protection and durability.
Profiles is customized as per customers' requirements.

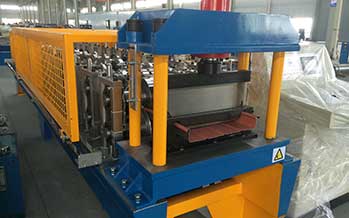

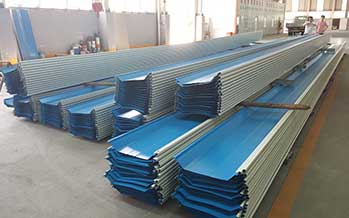

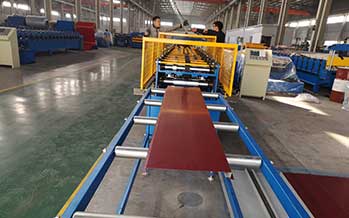

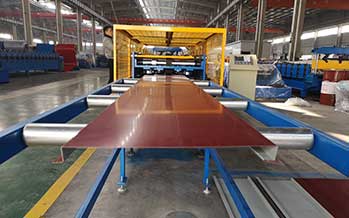

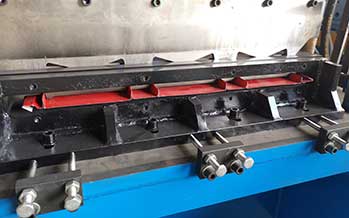

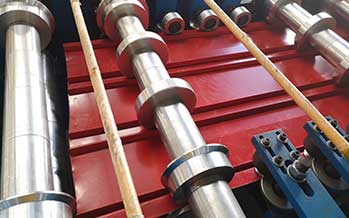

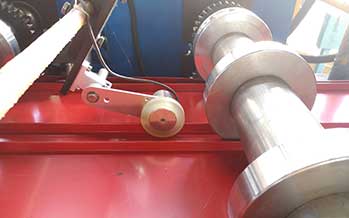

DETAIL PICTURE

Standing-seam-roll-forming-machine1
Standing-seam-roll-forming-machine2
Standing-seam-roll-forming-machine3
Standing-seam-roll-forming-machine4

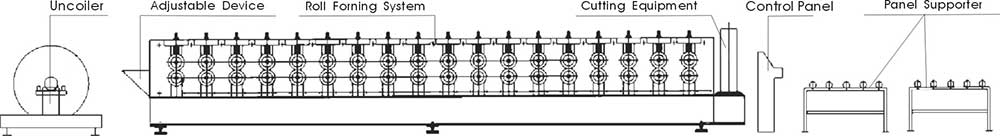

PROCESS FLOW

PARAMETER

Material

Type

Colored or galvanized steel sheet

Thickness(mm)

0.3-0.7

Yield stress(Mpa)

230-300

Max. Forming speed(m/min)

0-15m/min

Roller material

45# steel with hard chrome treatment

Roller driven type

Chain transmission

Controller

PLC

Operation

Touch screen and button

Hydraulic system pressure(Mpa)

12

Hydraulic station motor power(KW)

4

Main motor power(KW)

3

Total weight(Kg)

About 4000
