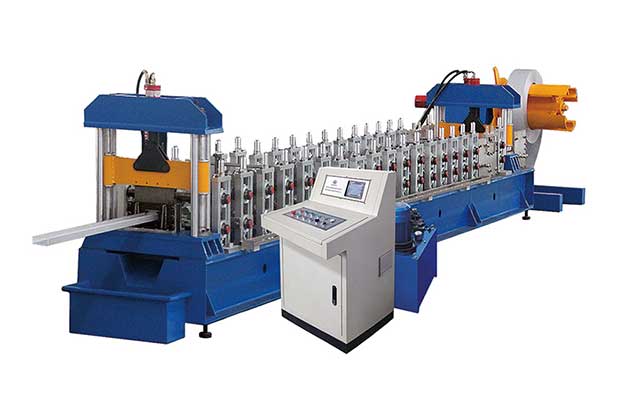

Automatic Keel Machine

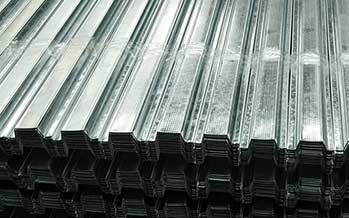

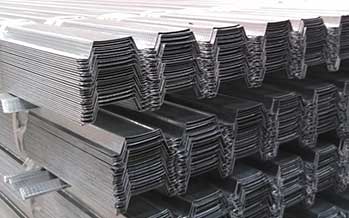

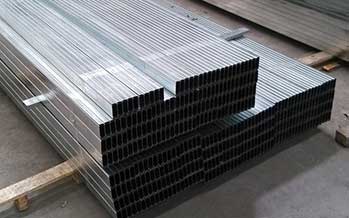

The keel machine uses strip steel as raw material and is formed by continuous cold rolling to produce complex section profiles (products include: light steel keel, paint keel, cassette keel, various building profiles, steel structures, steel-lined door frame profiles, high-speed guardrails etc.) and different specifications of cold-bending, paint-baking unit equipment. Profiles is customized as per customers' requirements.

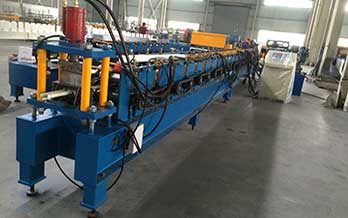

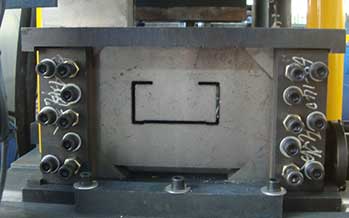

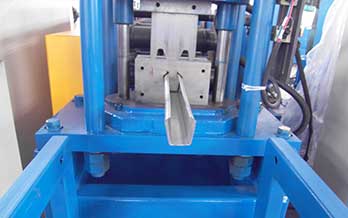

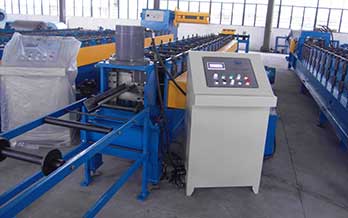

DETAIL PICTURE

automatic-keel-machine1
automatic-keel-machine2
automatic-keel-machine3
automatic-keel-machine4

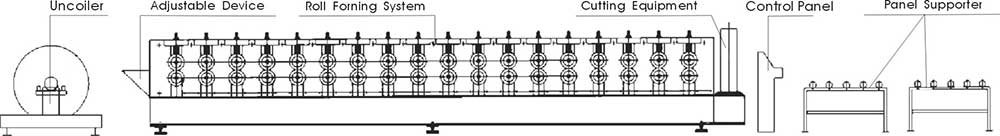

PROCESS FLOW

PARAMETER



Material

Type

Colored or galvanized steel sheet

Thickness(mm)

0.3-0.7

Yield stress(Mpa)

230-300

Max. Forming speed(m/min)

0-15m/min or 0-30m/min

Roller material

45# steel with hard chrome treatment

Roller driven type

Chain transmission

Controller

PLC

Operation

Touch screen and button

Hydraulic system pressure(Mpa)

12

Hydraulic station motor power(KW)

4 or 5.5

Main motor power(KW)

3 or 4

Total weight(Kg)

About 3000
