C Z Purlin Machine

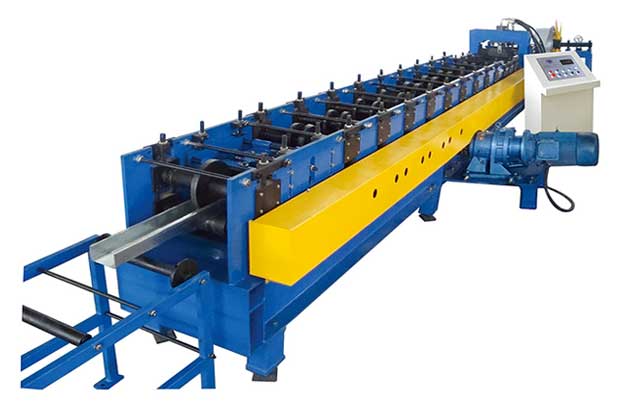

The purlin machine is a mechanical device that produces purlins, which are horizontal components distributed along the length of a roof, located on the primary rafters, and support secondary rafters. The purlin machine has the characteristics of high working efficiency, simple operation, convenient maintenance, and available in various models and sizes.
Profiles is customized as per customers' requirements.

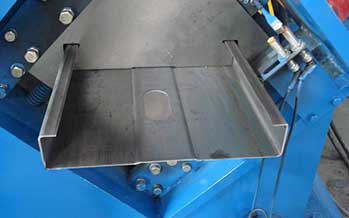

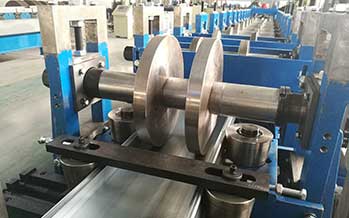

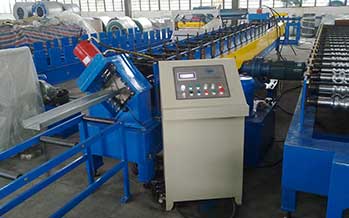

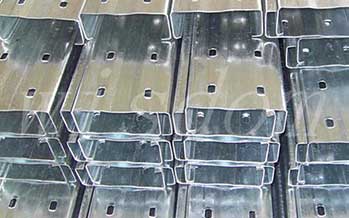

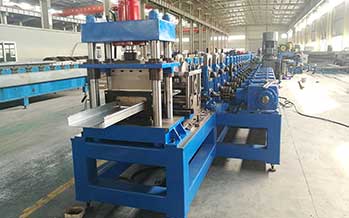

DETAIL PICTURE

CZ-purlin-machine1
CZ-purlin-machine2
CZ-purlin-machine3
CZ-purlin-machine4

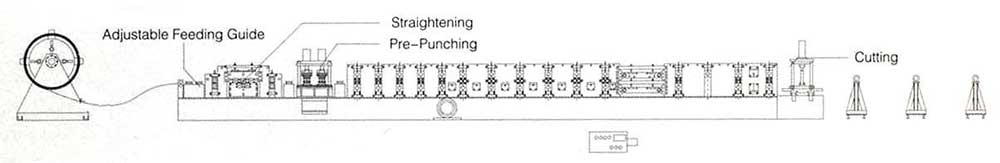

PROCESS FLOW

PARAMETER

Material

Type

Colored or galvanized steel sheet

Thickness(mm)

1.5-3.0

Yield stress(Mpa)

230-300

Max. Forming speed(m/min)

0-15m/min

Roller material

GCr15 steel with hard chrome treatment

Roller driven type

Chain transmission

Controller

PLC

Operation

Touch screen and button

Hydraulic system pressure(Mpa)

12

Hydraulic station motor power(KW)

18.5

Main motor power(KW)

   5.5

Total weight(Kg)

   About 8000
