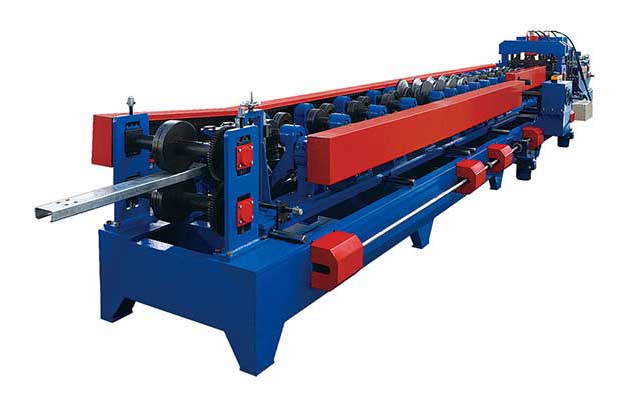

C&Z Changeable Purlin Machine

Auto C&Z changeable purlin machine

C&Z shape and multi sizes produced by one machine

Auto change size, auto punch holes, easy operate

Suitable for thickness 1.5-3mm

Web size 100-450mm

Flange size 50-100mm

Fast speed 0-15m/min

Contact by office@willingint.com or 0086 13588279758

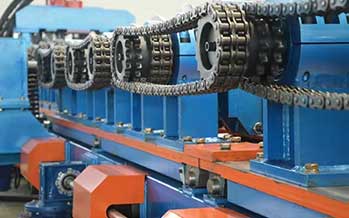

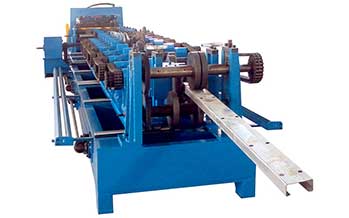

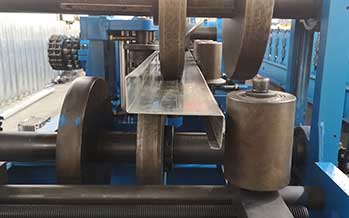

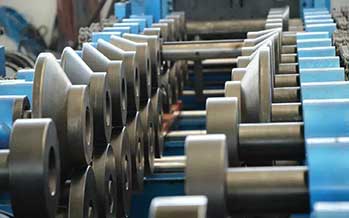

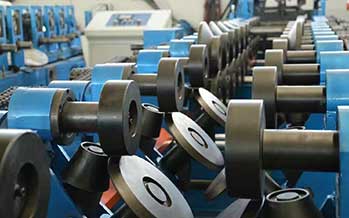

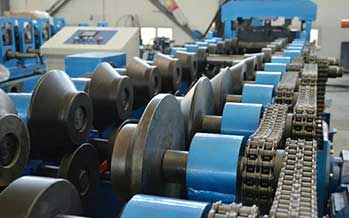

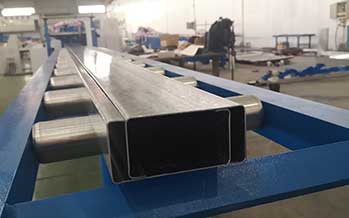

DETAIL PICTURE

C Z purlin machine
C Z purlin machine
C Z purlin machine
C Z purlin machine
C Z purlin machine
C Z purlin machine
C Z purlin machine

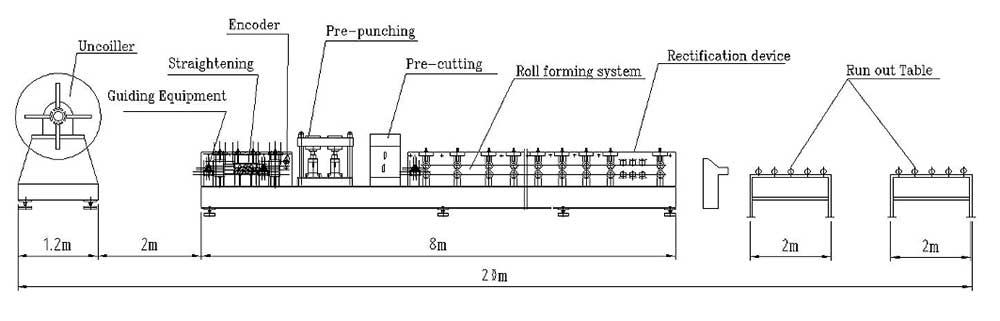

PROCESS FLOW



PARAMETER

Material

Type

Colored or galvanized steel sheet

Thickness(mm)

1.5-3.0

Yield stress(Mpa)

235-350

Max. Forming speed(m/min)

0-15m/min

Roller material

GCr15 steel with hard chrome treatment

Roller driven type

Chain transmission

Controller

PLC

Operation

Touch screen and button

Hydraulic system pressure(Mpa)

12

Hydraulic station motor power(KW)

18.5

Main motor power(KW)

   5.5

Total weight(Kg)

   About 8000
