EPS Sandwich Panel

As a new material in structure, the polyurethane roof panel has been the most suitable choice for many users. The characters of EPS roof panel are heat insulation, waterproof, soundproof, and easy to install. The excellent function is the reason that so many people choice it as roof board.

DETAIL PICTURE

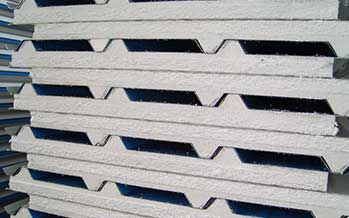

EPS-Sandwich-Panel1

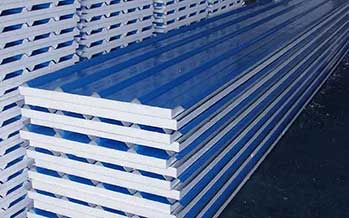

EPS-Sandwich-Panel2

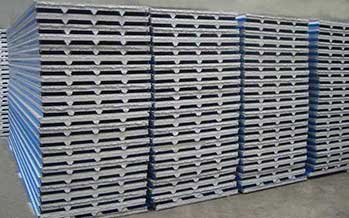

EPS-Sandwich-Panel3

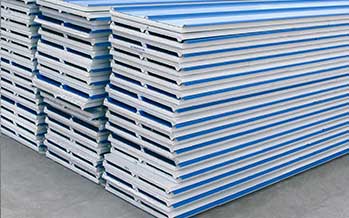

EPS-Sandwich-Panel4

PROCESS FLOW

PARAMETER

Foam thickness

50/75/100/120/150(mm)

Effective width

950, 980, 1150(mm)

Length

According to customer’ s request, less than 11.8m.

Materials

Polystyrene foam board, Color steel tile

Structure

Upper and lower layer: Color steel sheet, Middle: Polystyrene foam board

EPS density

10/12/14/15/16/18/20 kg/m³

Conventional color

White, sea blue, red etc.

Lifetime

More than 60 years

Performance

Light weight, heat insulation, water resistant, green and environmental

Usage

Roof, Wall, Ceiling, Partition
