Step Tile Roll Forming Machine

Step Tile Roll Forming Machine

Size accurate, and seamless lap joint

Various shapes can be customized, beautiful version

Fast production speed and high work efficiency

Automatic control to reduce labor costs

Processed by CNC machine, stable operation, high precision and long service life.

Contact by office@willingint.com or 0086 13588279758

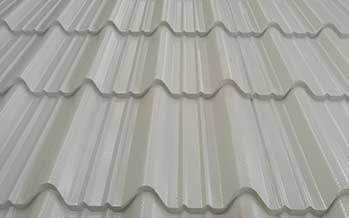

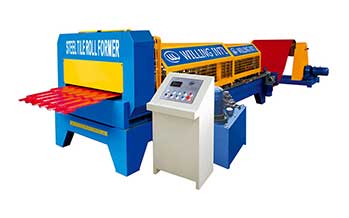

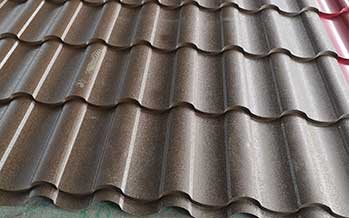

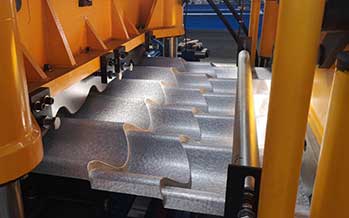

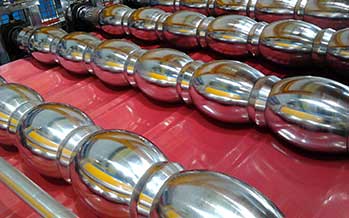

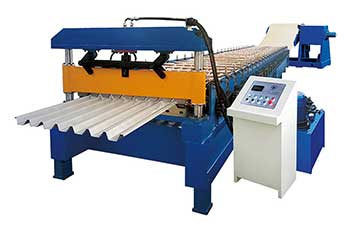

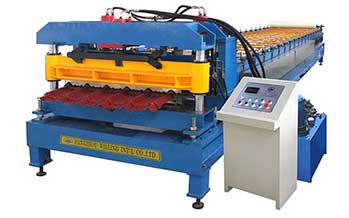

DETAIL PICTURE

Step Tile Roll Forming Machine
Step Tile Roll Forming Machine
Step Tile Roll Forming Machine
Step Tile Roll Forming Machine
Step Tile Roll Forming Machine
Step Tile Roll Forming Machine

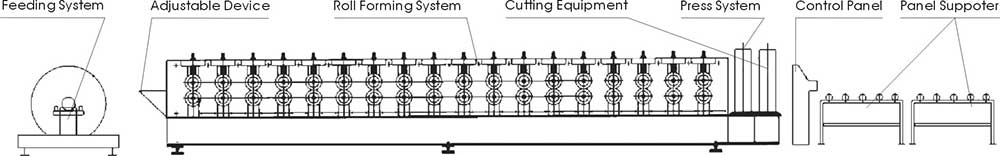

PROCESS FLOW





PARAMETER

Material

Type

Color steel sheet

Thickness(mm)

0.4-0.6

Yield stress(Mpa)

230-300

Max. Forming speed(m/min)

2-3m/min or 4-6m/min

Roller material

45# steel with hard chrome treatment

Roller driven type

Chain transmission

Controller

PLC

Operation

Touch screen and button

Hydraulic system pressure(Mpa)

12

Hydraulic station motor power(KW)

5.5

Main motor power(KW)

5.5

Total power(KW)

11

Total weight(Kg)

About 6000
