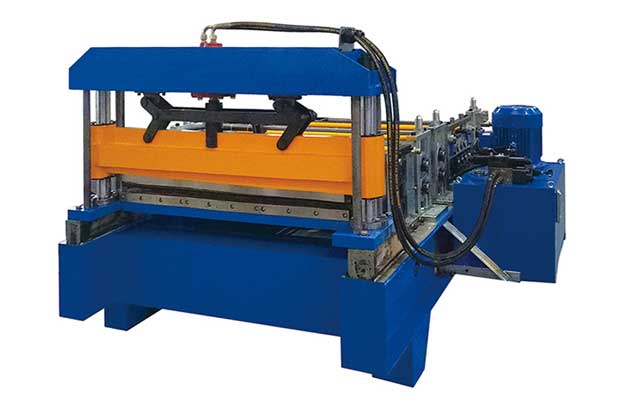

Cut-to-length-machine0

Cut To Length Machine

This machine is focus on cut off metal sheet to any length as production request, suitable for sheet thickness from 0.25mm up to 3mm.

DETAIL PICTURE

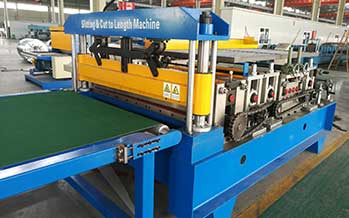

Cut-to-length-machine1

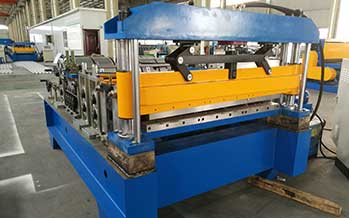

Cut-to-length-machine2

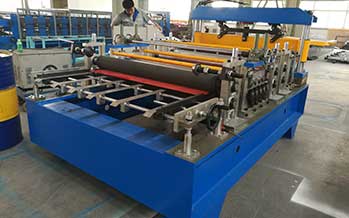

Cut-to-length-machine3

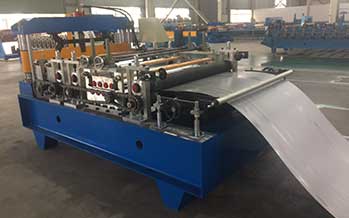

Cut-to-length-machine4

PROCESS FLOW

PARAMETER

Material

Type

Colored or galvanized steel sheet

Thickness(mm)

0.25-3.0

Yield stress(Mpa)

230-300

Max. Forming speed(m/min)

0-15m/min or 0-30m/min

Roller material

Cr12

Roller driven type

Chain transmission

Controller

PLC

Operation

Touch screen and button

Hydraulic system pressure(Mpa)

12

Main motor power(KW)

3

Total weight(Kg)

About 1000
