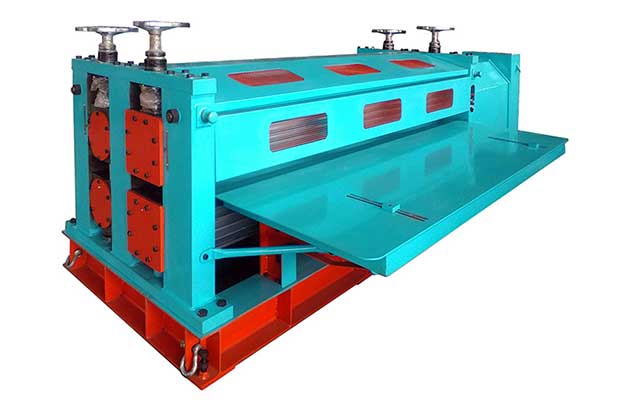

Barrel-Corrugated-Machine0

Barrel Corrugated Machine

The corrugated tile forming machine is mainly composed of a drive motor, a reducer, a transmission system, a forming roller, a leveling roller, and an automatic feeding platform and electrical control cabinets. The equipment adopts a low-speed, high-torque, low-inertia AC motor driven by a V-belt to a hard-tooth surface reducer with dual output shafts to achieve the purpose of transmission and deceleration. The work rolls are automatically fed, thus ensuring product stability.

DETAIL PICTURE

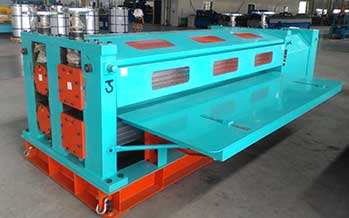

Barrel-Corrugated-Machine1

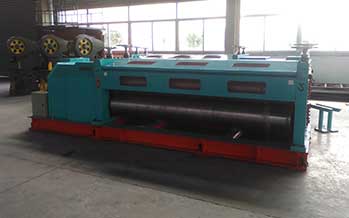

Barrel-Corrugated-Machine2

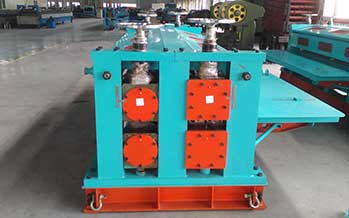

Barrel-Corrugated-Machine3

PROCESS FLOW

PARAMETER

Material thickness

0.14-0.5mm

Total thickness

≤0.6mm for more than 1 piece

Material width

1000mm below

Working speed

9-12 times/min

Capacity

2-4 tons/hour
