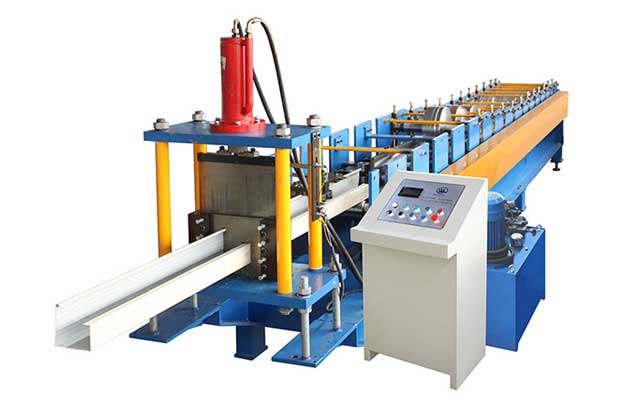

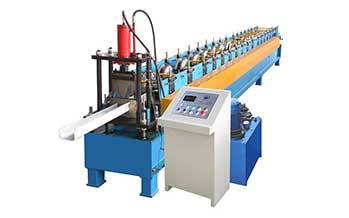

Gutter Forming Machine

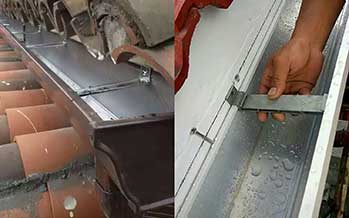

The gutter refers to the concave part of the roof between the two crotch of the building. The roof drainage is divided into organized drainage and unorganized drainage (free drainage). Organized drainage generally collects rainwater into the gutter and then drains it through rainwater pipes, The ditch that collects rainwater is called gutter.

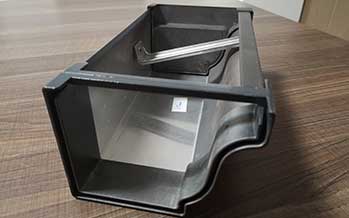

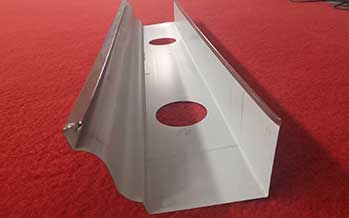

Profiles and size are customized as per customers' requirements.

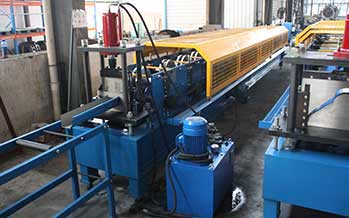

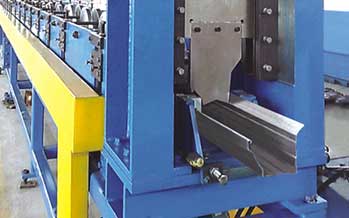

DETAIL PICTURE

Gutter-forming-machine1
Gutter-forming-machine2
Gutter-forming-machine3
Gutter-forming-machine4

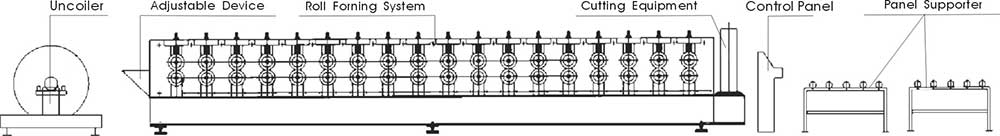

PROCESS FLOW

PARAMETER

Material

Type

Colored or galvanized steel sheet

Thickness(mm)

0.3-0.7

Yield stress(Mpa)

230-300

Max. Forming speed(m/min)

0-15m/min

Roller material

45# steel with hard chrome treatment

Roller driven type

Chain transmission

Controller

PLC

Operation

Touch screen and button

Hydraulic system pressure(Mpa)

12

Hydraulic station motor power(KW)

4

Main motor power(KW)

3

Total weight(Kg)

About 4000
