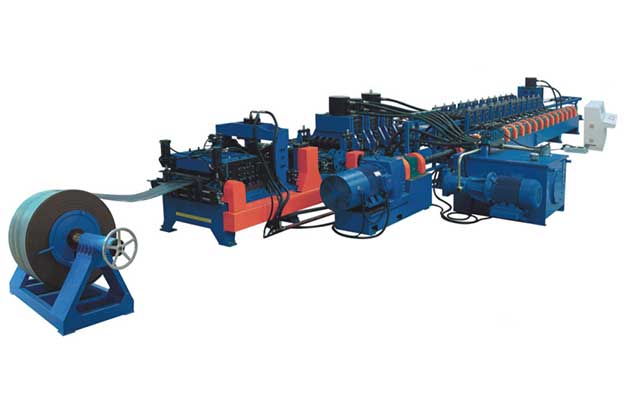

Guarding-Forming-Machine0

Guarding Forming Machine

Guardrail panel is made from hot rolled steel strips, and straightened, holes punched, roll formed and cut to length by guardrail roll forming machine. The finished products are of many features, such as high efficiency, high automatization, less labor and ect.. This machine integrates the technology of cold roll forming, punching, automatic stack and automatic controlling.
Profiles is customized as per customers' requirements.

DETAIL PICTURE

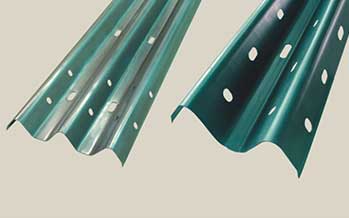

Guarding-Forming-Machine1

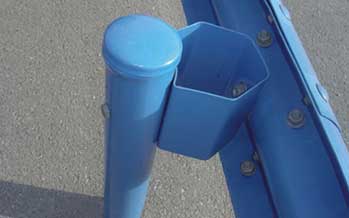

Guarding-Forming-Machine2

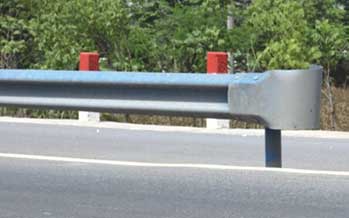

Guarding-Forming-Machine3

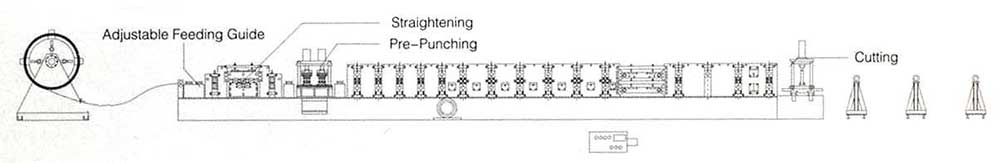

PROCESS FLOW

PARAMETER

Material

Type

Steel strip

Thickness(mm)

2.5-4.0

Yield stress(Mpa)

230-300

Max. Forming speed(m/min)

0-10m/min

Roller material

D2

Roller driven type

Gimbal transmission

Controller

PLC

Operation

Touch screen and button

Hydraulic system pressure(Mpa)

25

Hydraulic station motor power(KW)

15

Main motor power(KW)

30

Total weight(Kg)

About 10000
