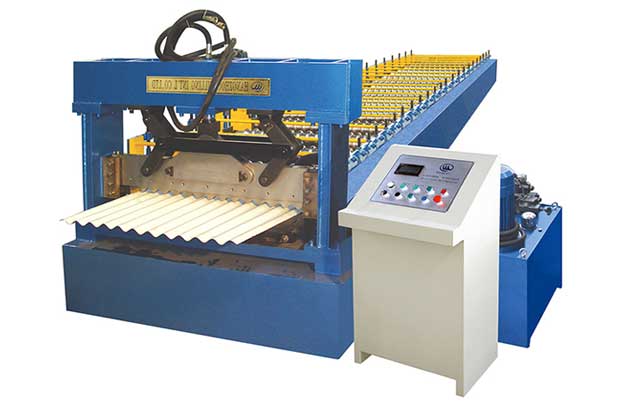

Corrugate Forming Machine

This corrugate roll forming machine widely used for roof and wall of warehouse, factories, exhibition halls, country clubs, and so on for outdoor decorations.
Profiles is customized as per customers' requirements.

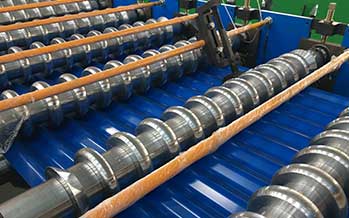

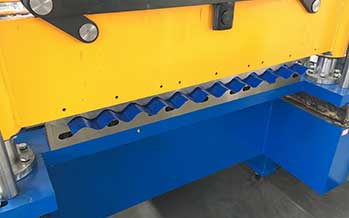

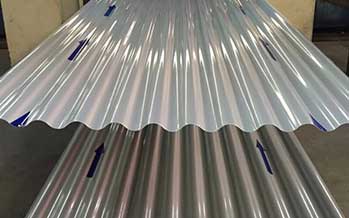

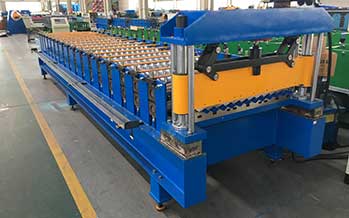

DETAIL PICTURE

Corrugate-forming-machine1
Corrugate-forming-machine2
Corrugate-forming-machine3
Corrugate-forming-machine4

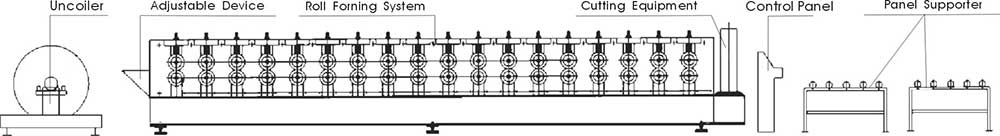

PROCESS FLOW

PARAMETER

Material

Type

Colored or galvanized steel sheet

Thickness(mm)

0.3-0.7

Yield stress(Mpa)

230-300

Max. Forming speed(m/min)

0-15m/min or 0-30m/min

Roller material

45# steel with hard chrome treatment

Roller driven type

Chain transmission

Controller

PLC

Operation

Touch screen and button

Hydraulic system pressure(Mpa)

12

Hydraulic station motor power(KW)

4 or 5.5

Main motor power(KW)

3 or 4

Total weight(Kg)

About 6000
