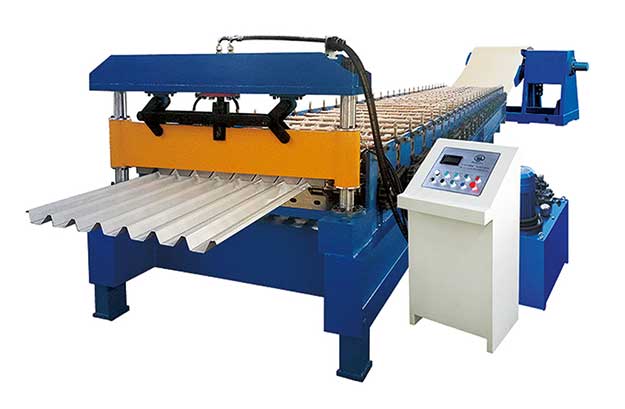

Corrugated Roll Forming Machine

Corrugated Roll Forming Machine

Suitable for thickness 0.3-0.7mm
Work speed 0-30m/min
Accurate size, perfect surface
Various shapes can be customized
Automatic PLC control system
Contact by office@willingint.com or 0086 13588279758

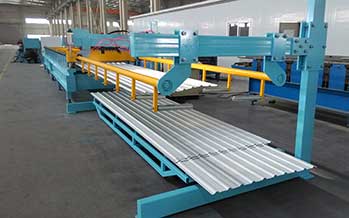

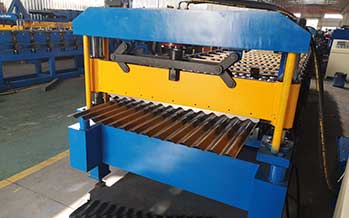

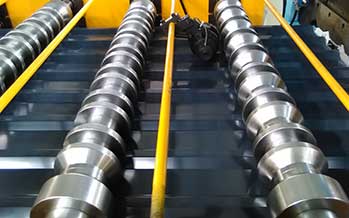

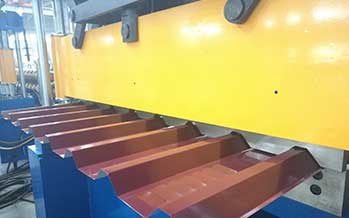

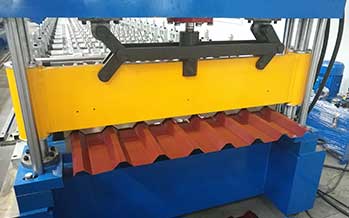

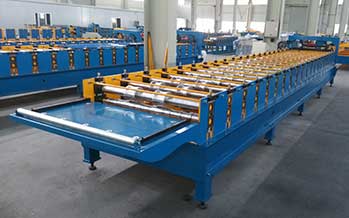

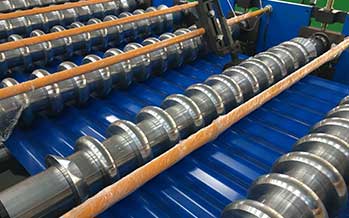

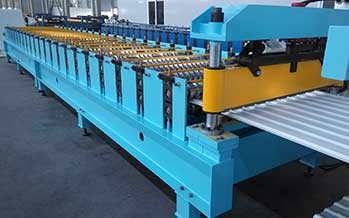

DETAIL PICTURE

Corrugated Roll Forming Machine
Corrugated Roll Forming Machine
Corrugated Roll Forming Machine
Corrugated Roll Forming Machine
Corrugated Roll Forming Machine
Corrugated Roll Forming Machine
Corrugated Roll Forming Machine
Corrugated Roll Forming Machine

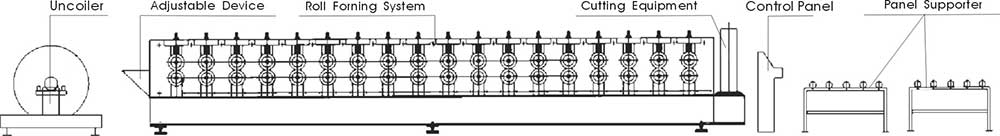

PROCESS FLOW

PARAMETER



Material

Type

Colored or galvanized steel sheet

Thickness(mm)

0.3-0.7

Yield stress(Mpa)

230-300

Max. Forming speed(m/min)

0-15m/min or 0-30m/min

Roller material

45# steel with hard chrome treatment

Roller driven type

Chain transmission

Controller

PLC

Operation

Touch screen and button

Hydraulic system pressure(Mpa)

12

Hydraulic station motor power(KW)

4 or 5.5

Main motor power(KW)

   3 or 4

Total weight(Kg)

   About 6000
