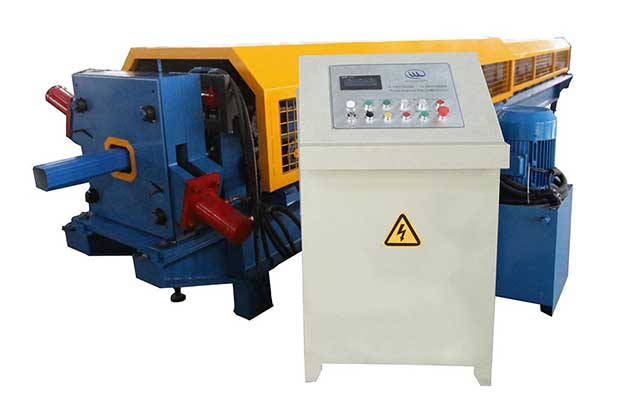

Down-pipe Forming Machine & Pipe-bending Machine

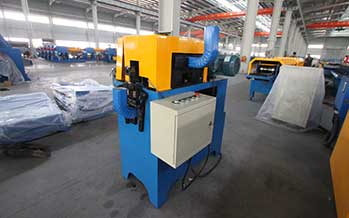

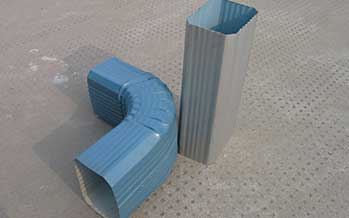

This type downpipe machine is cold rolled and automatically edge interlocked, the finished products are of many features, such as good interlocking, no leak, beautiful integrity, long time using and so on. This series machine is matched with downpipe bending (elbow) machine, used for bending and end narrowing.Profiles and size are customized as per customers' requirements.

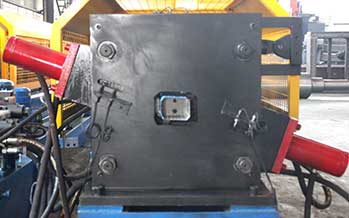

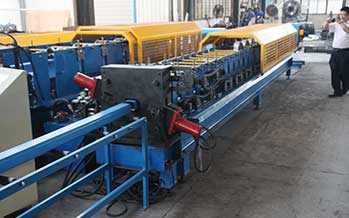

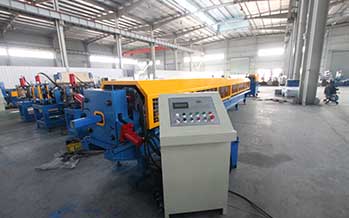

DETAIL PICTURE

Down-pipe-forming-machine-&-Pipe-bending-machine1
Down-pipe-forming-machine-&-Pipe-bending-machine2
Down-pipe-forming-machine-&-Pipe-bending-machine3
Down-pipe-forming-machine-&-Pipe-bending-machine4

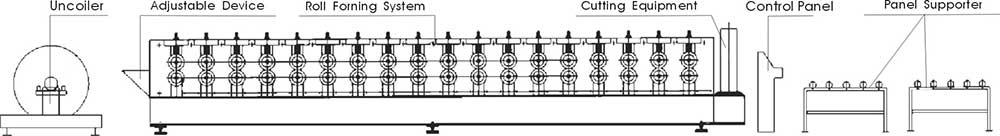

PROCESS FLOW

PARAMETER

Material

Type

Colored or galvanized steel sheet

Thickness(mm)

0.3-0.7

Yield stress(Mpa)

230-300

Max. Forming speed(m/min)

0-15m/min

Roller material

45# steel with hard chrome treatment

Roller driven type

Chain transmission

Controller

PLC

Operation

Touch screen and button

Hydraulic system pressure(Mpa)

12

Hydraulic station motor power(KW)

7.5

Main motor power(KW)

   3

Total weight(Kg)

   About 6000
