Embossing Machine

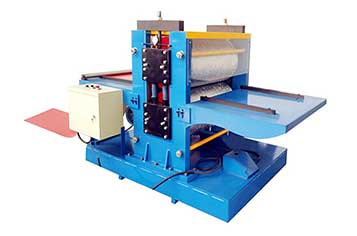

Metal embossing machine is a kind of mechanical equipment used for embossing and forming of aluminum plate, color steel plate, copper plate, stainless steel plate and other metal sheets, including frame, guide roller, embossing roller, transmission device and adjustment device.

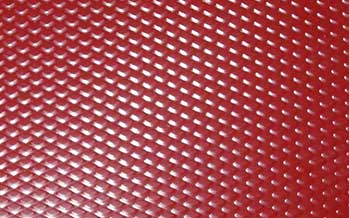

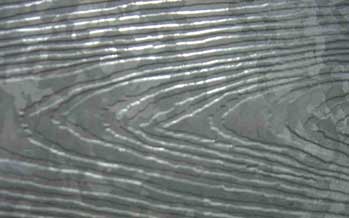

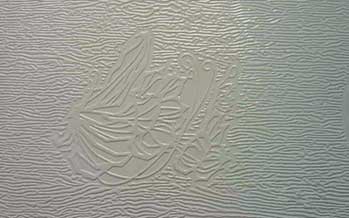

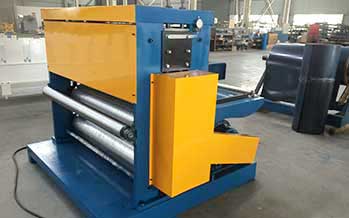

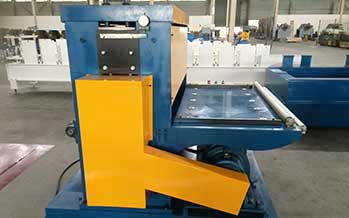

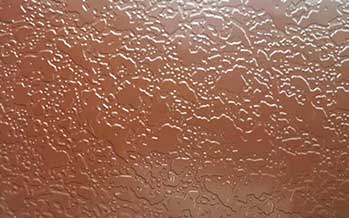

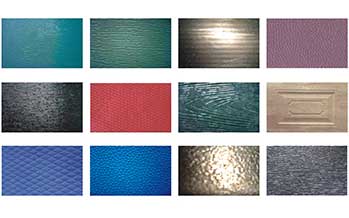

DETAIL PICTURE

Embossing-machine1
Embossing-machine2
Embossing-machine3
Embossing-machine4

PROCESS FLOW

PARAMETER

Material

Type

Colored or galvanized steel sheet

Thickness(mm)

0.3-0.6

Yield stress(Mpa)

230-300

Max. Forming speed(m/min)

0-15m/min or 0-30m/min

Roller material

Cr12

Roller driven type

Chain transmission

Controller

PLC

Operation

Touch screen and button

Hydraulic system pressure(Mpa)

12

Hydraulic station motor power(KW)

4 or 5.5

Main motor power(KW)

3 or 4

Total weight(Kg)

About 4000
