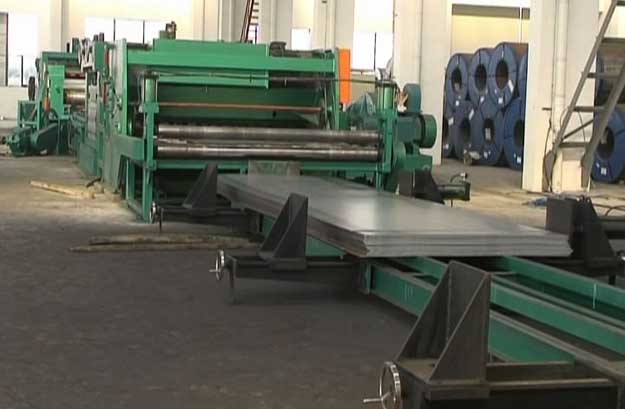

Cut To Length Production Line

This machine is focus on cut off metal sheet to any length as production request, suitable for sheet thickness from 0.25mm up to 10mm.

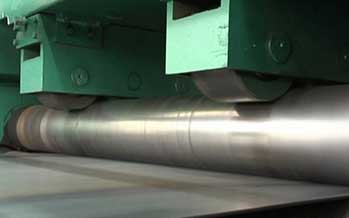

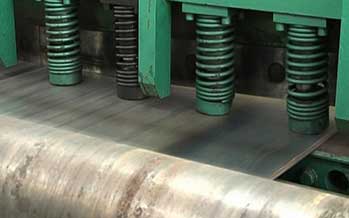

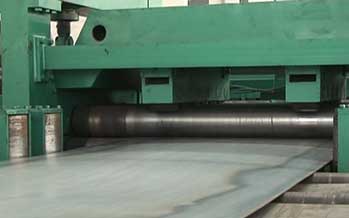

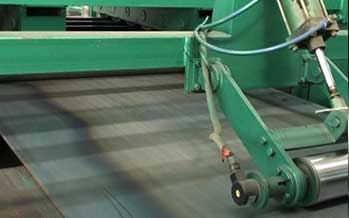

DETAIL PICTURE

Cut-to-length-production-line1
Cut-to-length-production-line2
Cut-to-length-production-line3
Cut-to-length-production-line4

PROCESS FLOW

PARAMETER

Material

Type

CR, HR, AL, SS

Thickness(mm)

0.25-10mm

Yield stress(Mpa)

230-550

Width

100-2000mm

Speed

0-25m/min

Min. slit width

30mm

Length tolerance

+/-1mm

Diagonal tolerance

+/-1.5mm

Max. coil weight

30T

Coil inner diameter

508/610mm

Coil outer diameter

≤2200mm
