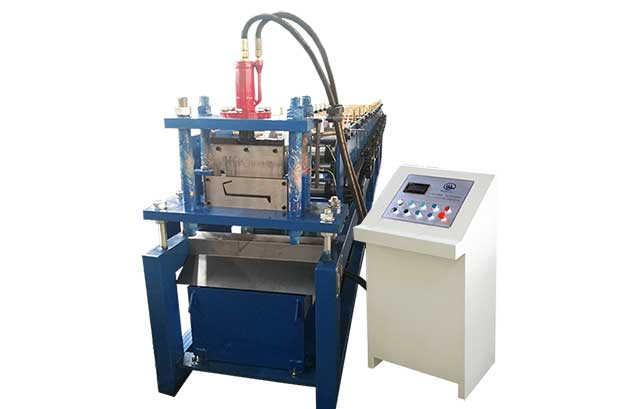

Flashing Machine & Side Trim Forming Machine

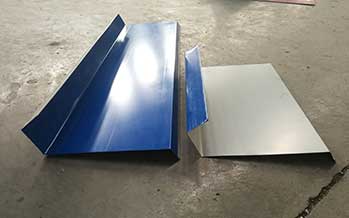

Flashing refers to the waterproofing of parapets, overhangs or high and low roof walls. Its main function is to ensure that parapets, overhangs, and high and low roof walls are not washed by rainwater, and to protect the waterproof layer of the rest of the roof.

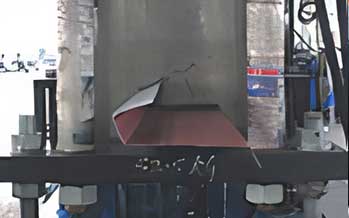

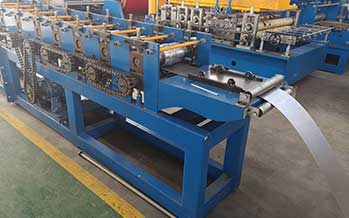

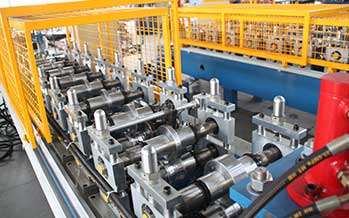

DETAIL PICTURE

Flashing-Machine-&-Side-trim-forming-machine1
Flashing-Machine-&-Side-trim-forming-machine2

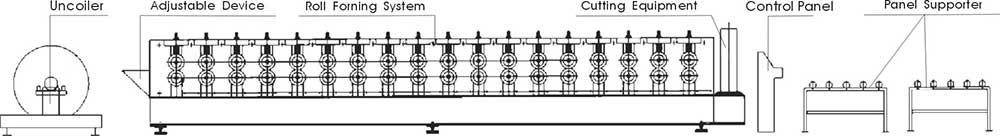

PROCESS FLOW

PARAMETER

Material

Type

Colored or galvanized steel sheet

Thickness(mm)

0.3-0.7

Yield stress(Mpa)

230-300

Max. Forming speed(m/min)

0-15m/min or 0-30m/min

Roller material

45# steel with hard chrome treatment

Roller driven type

Chain transmission

Controller

PLC

Operation

Touch screen and button

Hydraulic system pressure(Mpa)

12

Hydraulic station motor power(KW)

4

Main motor power(KW)

3

Total weight(Kg)

About 3000
