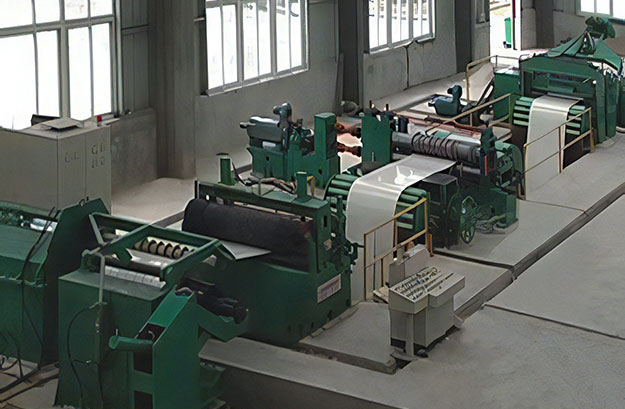

Slit-production-line0

Slit Production Line

The slitting machine is suitable for longitudinally cutting metal strips and rewinding the slitted strips into rolls. It is composed of uncoiling, feeding and positioning, slitting, winding and other parts. It is suitable for processing cold-rolled and hot-rolled carbon steel, stainless steel and various metal materials after surface coating.

DETAIL PICTURE

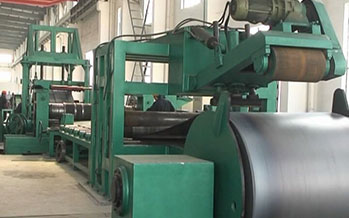

Slit-Production-Line3

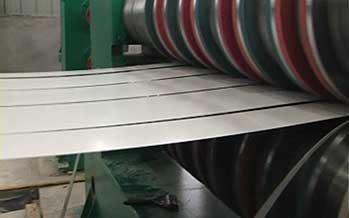

Slit-production-line1

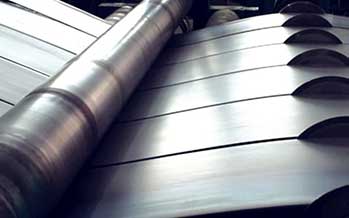

Slit-production-line2

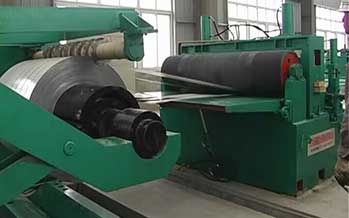

Slit-Production-Line4

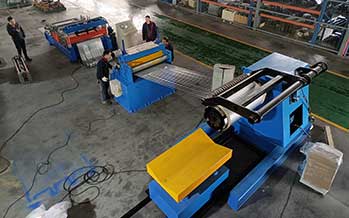

Slit-production-line5

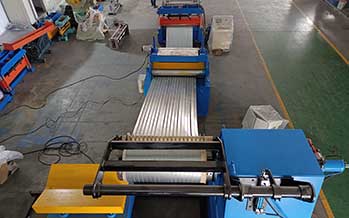

Slit-production-line6

PROCESS FLOW

PARAMETER

Material

Type

CR, HR, AL, SS

Thickness(mm)

0.3-3mm

Yield stress(Mpa)

230-550

Width

100-1600mm

Speed

0-120m/min

Slit strips

Max. 20 strips

Min. slit width

30mm

Slit tolerance

+/-0.05mm

Max. coil weight

30T

Coil inner diameter

508/610mm

Coil outer diameter

≤1600mm

Machine size

28000*4000*1200mm (L*W*H)
