Roof Sheet Making Machine

Roof Sheet Making Machine

Suitable for thickness 0.3-0.7mm

Work speed 0-30m/min

Accurate size, perfect surface

Various shapes can be customized

Automatic PLC control system

Contact by office@willingint.com or 0086 13588279758

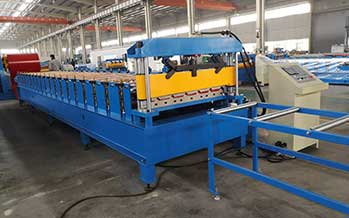

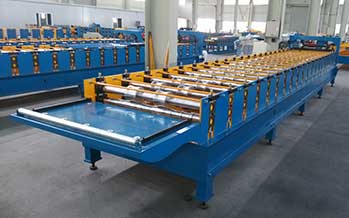

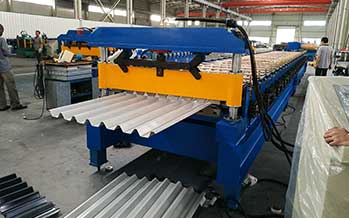

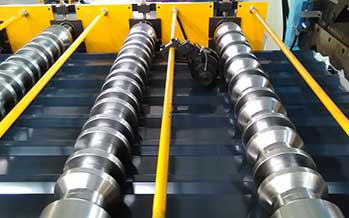

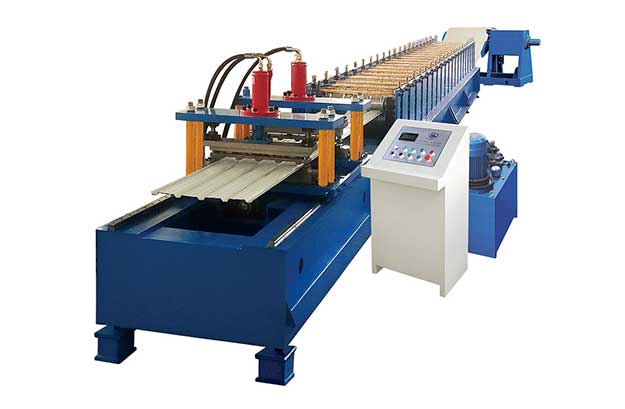

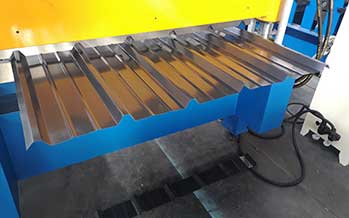

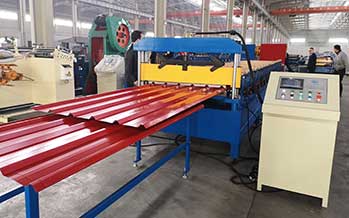

DETAIL PICTURE

Roof Sheet Making Machine
Roof Sheet Making Machine
Roof Sheet Making Machine
Roof Sheet Making Machine
Roof Sheet Making Machine
Roof Sheet Making Machine

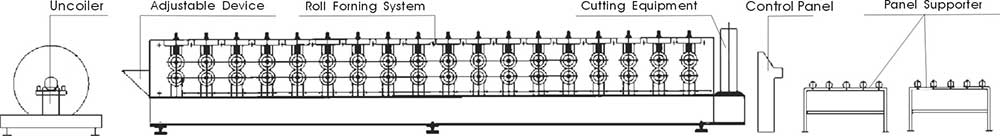

PROCESS FLOW

PARAMETER

Material

Type

Colored or galvanized steel sheet

Thickness(mm)

0.3-0.7

Yield stress(Mpa)

230-300

Max. Forming speed(m/min)

0-15m/min or 0-30m/min

Roller material

45# steel with hard chrome treatment

Roller driven type

Chain transmission

Controller

PLC

Operation

Touch screen and button

Hydraulic system pressure(Mpa)

12

Hydraulic station motor power(KW)

4 or 5.5

Main motor power(KW)

3 or 4

Total weight(Kg)

About 6000

Leave Your Need

Please write your message here! We will send detail technical info and quotation to you as soon as possible!
